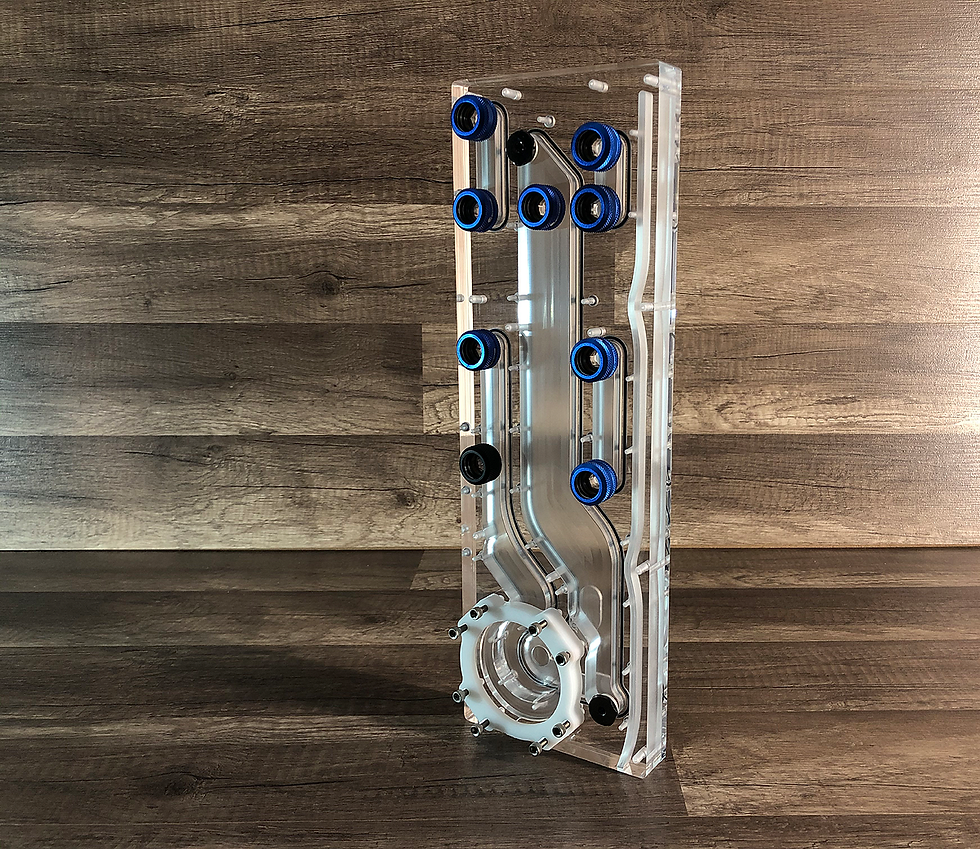

Dimensions: W4.75 x H14.2 x D0.93 inches (+/ - )
Material: Cast Acrylic.
Eleven Total G 1/4 Ports.
Requires D5 or 655 Pump (Not Included)
Compatible with: Define S2 and R6 Define 7 and 7XLMeshiy S2 and S2 vision Vector RS case - and other cases supporting a 360mm fan mount next to the motherboard
About These Reservoirs:
NOTE:
RESERVOIRS COME WITH BLACK STAINLESS STEEL SCREWS
WHEN YOU CHOOSE BLACK BRACKET(S), OR STAINLESS
STEEL SCREWS WHEN YOU CHOOSE WHITE BRACKET(S).
Due to rising costs, the G1/4 plugs will no longer be included with reservoirs.
All reservoirs are designed in Vectric Aspire and cut using a
CNC Machine.
All reservoirs are pressure tested and thoroughly
checked before shipment.
We use pre-made oring, meaning they are one piece
and don't have a seam for best seal and durability.
Machine Finished Semi-clear.
Almost see through once filled with water.
These reservoirs are designed to be used as a single water loop reservoir.
Currently, The DUO, DUO XL, EVO-D and TWIN 360 are the only reservoirs that
can do dual loop.
They can be mounted sideways, upside down, and face up.
They cannot be mounted as pump up and reservoir facing down.
Make sure the fluid level is almost completely full to prevent air
getting into the water loop.
Most reservoirs can be mounted on an empty 120mm or 140mm fan
space(s). If you're using the "C" or "L" brackets, they can
be mounted in various ways.
All necessary mounting hardware will be included with each reservoir.
RESERVOIRS THAT REQUIRE A PUMP CANNOT BE USED WITHOUT
INSTALLING A PUMP!
All threaded holes are G1/4 Tapped, so your favorite fittings of choice will
install with no issue.
Shipping Information:
We ship worldwide. This item will be shipped via USPS. It can take
anywhere from 3-5 days to deliver if you're in the United States.
Outside the U.S? It can take 5-15 days to receive your package. Please
understand it depends on the customs and carrier of your country.
All Items are placed inside a cardboard box and bubble wrapped to
prevent any damage.
Returns/Refunds:
If you're not 100% happy with your purchase you can return the item within
60 days for a full refund (Shipping not included). Item must be returned in
"like new" condition to receive the full refund. If there is damage to the
product, returns/refunds may not be accepted.
For more questions, contact us.
We would be happy to figure out a solution with you.
If your item arrives damaged, please take photos and contact us
as soon as possible so we can mend the situation.
A L L O R D E R S S H I P W I T H I N 1-2
B U S I N E S S D A Y S!
*PUMPS, FITTINGS CASE AND OTHER COMPONENTS ARE NOT INCLUDED AS SHOWN IN SOME PHOTOS*
